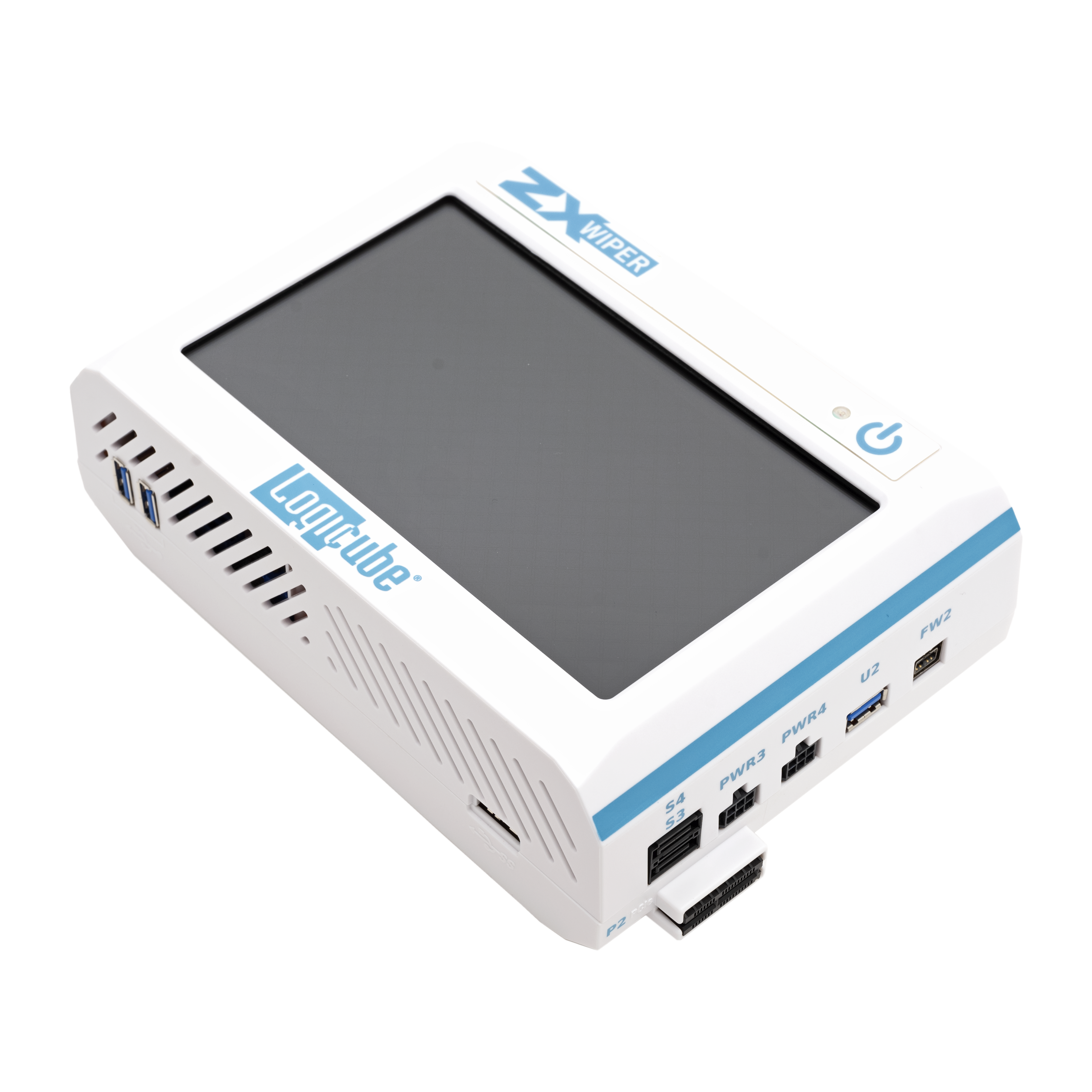

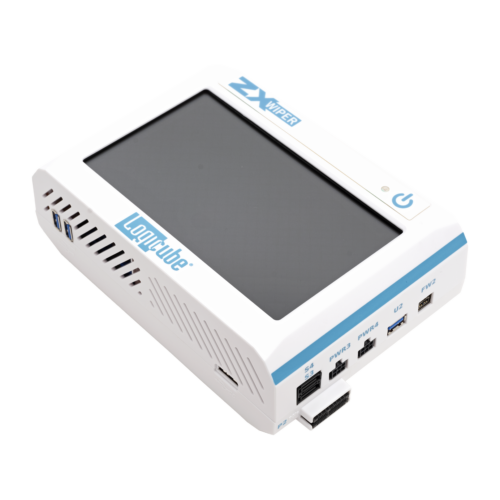

ZX-Wiper™
The ZX-Wiper is a High Speed, powerful, New-Generation Wiper, with speeds exceeding 60 GB/min in NVMe sanitization, equipped with 12 targets including SAS, SATA, USB, PCIe, FireWire & NVMe interfaces, supporting ITSP.40.006 v2 specifications and conforming to DoD 5220-M and NIST 800-88 guidelines.
The ZX-Wiper™ solution provides secure wiping of hard disk drives and USB enclosures. This reliable solution allows organizations to easily comply with NIST800-88 Guidelines for media sanitization.

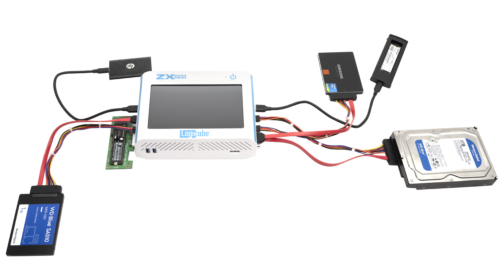

- Wipe up to 12 targets including SAS, SATA, USB, PCIe, FireWire & NVMe interfaces
- Extremely fast hard drive wiping at 31GB/min
- Wiping speeds exceeding to 60 GB/min are achieved via the optional USB-to-NVMe adapter
- Wipe drives conforming to NIST 800-88 Guidelines for Media Sanitation, DoD 520.22-M Specifications, & ITSP.40.006 v2 specifications
- M.2 NVMe, M.2 SATA, mSATA, microSATA, eSATA, flash media, IDE, ZIF & SCSI support avaialble with optoinal adapters
- One Gigabit Ethernet port provides network connectivity to operate the ZX-Wiper remotely
- The ZX-Wiper provides IT professionals in corporate and manufacturing environments the ability to quickly and confidently erase hard drive data, ensuring that drives are properly sanitized prior to re-purposing or disposal.
Features
High Speed Wiping
The ZX-Wiper will sanitize hard drives at speeds exceeding 31GB/min. Speeds up to 60GB/min on NVMe drives via USB-to-NVMe adapter.

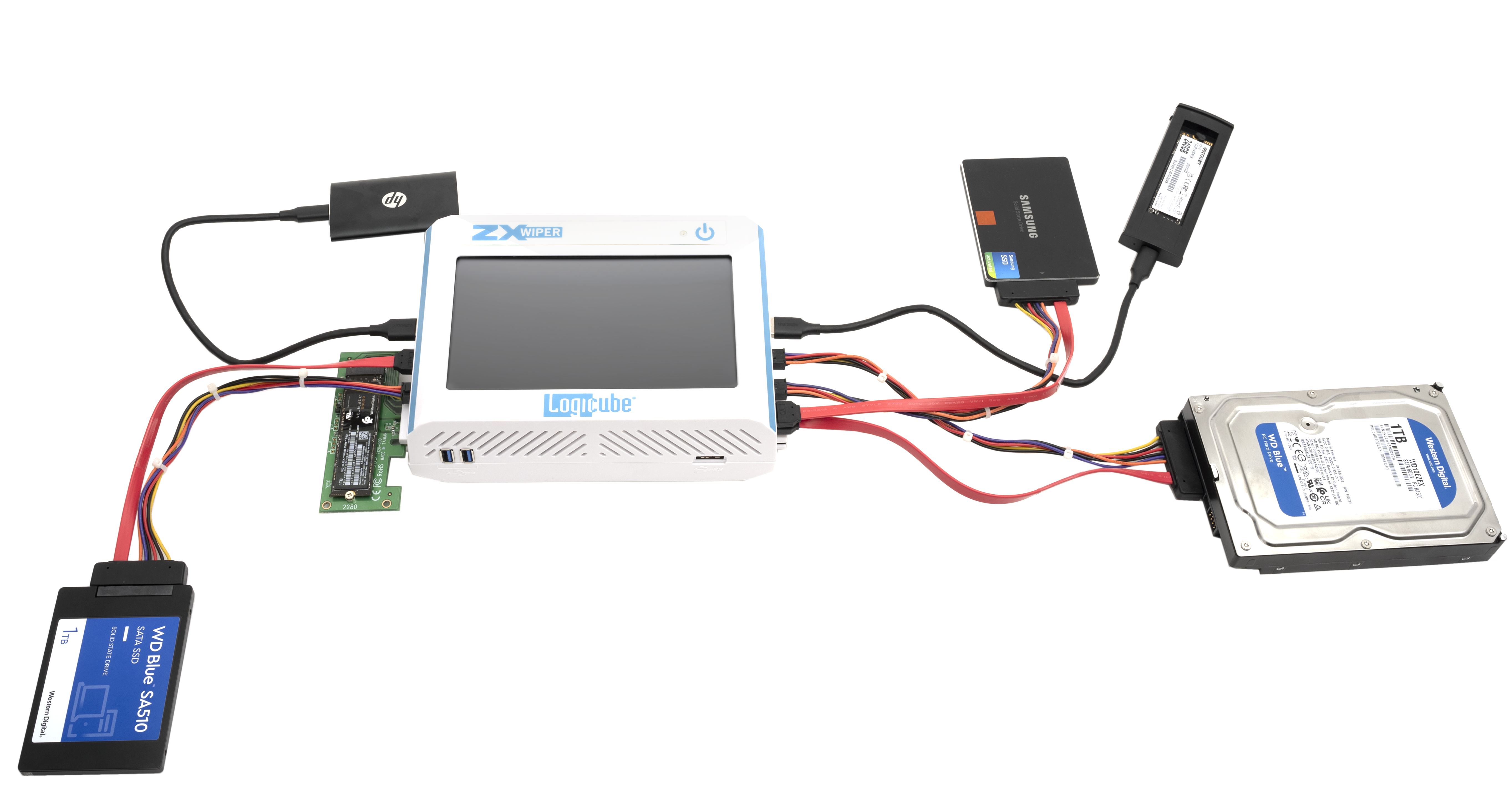

Multi-Target Wiping

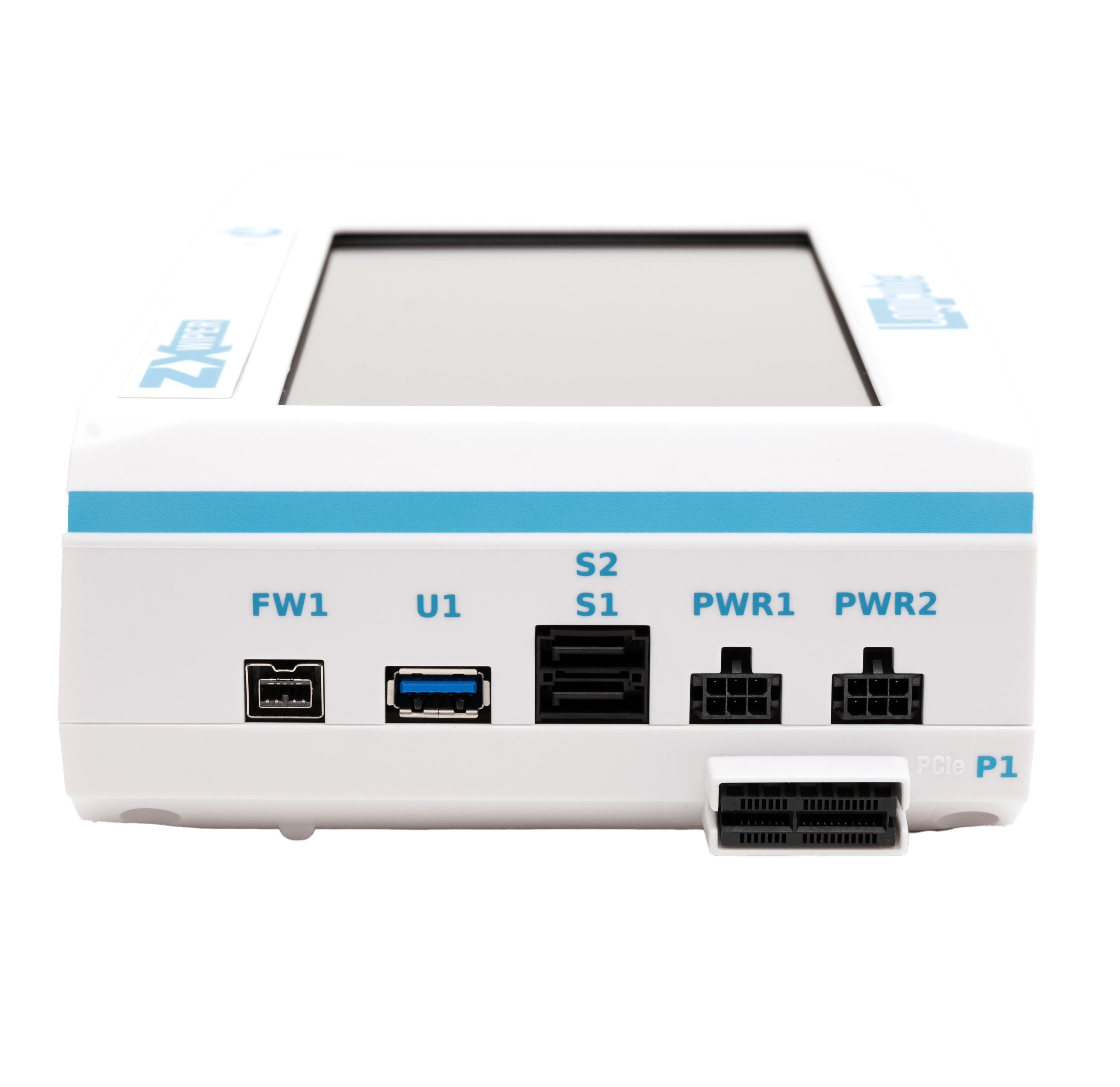

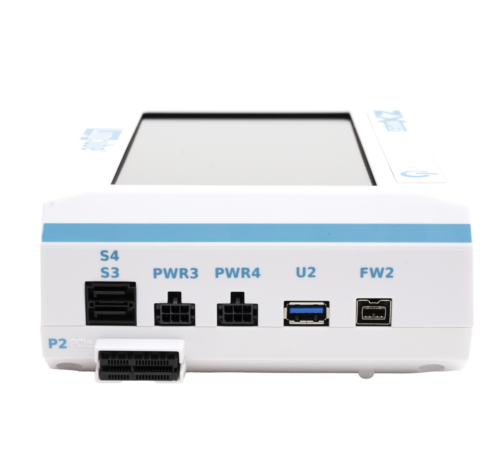

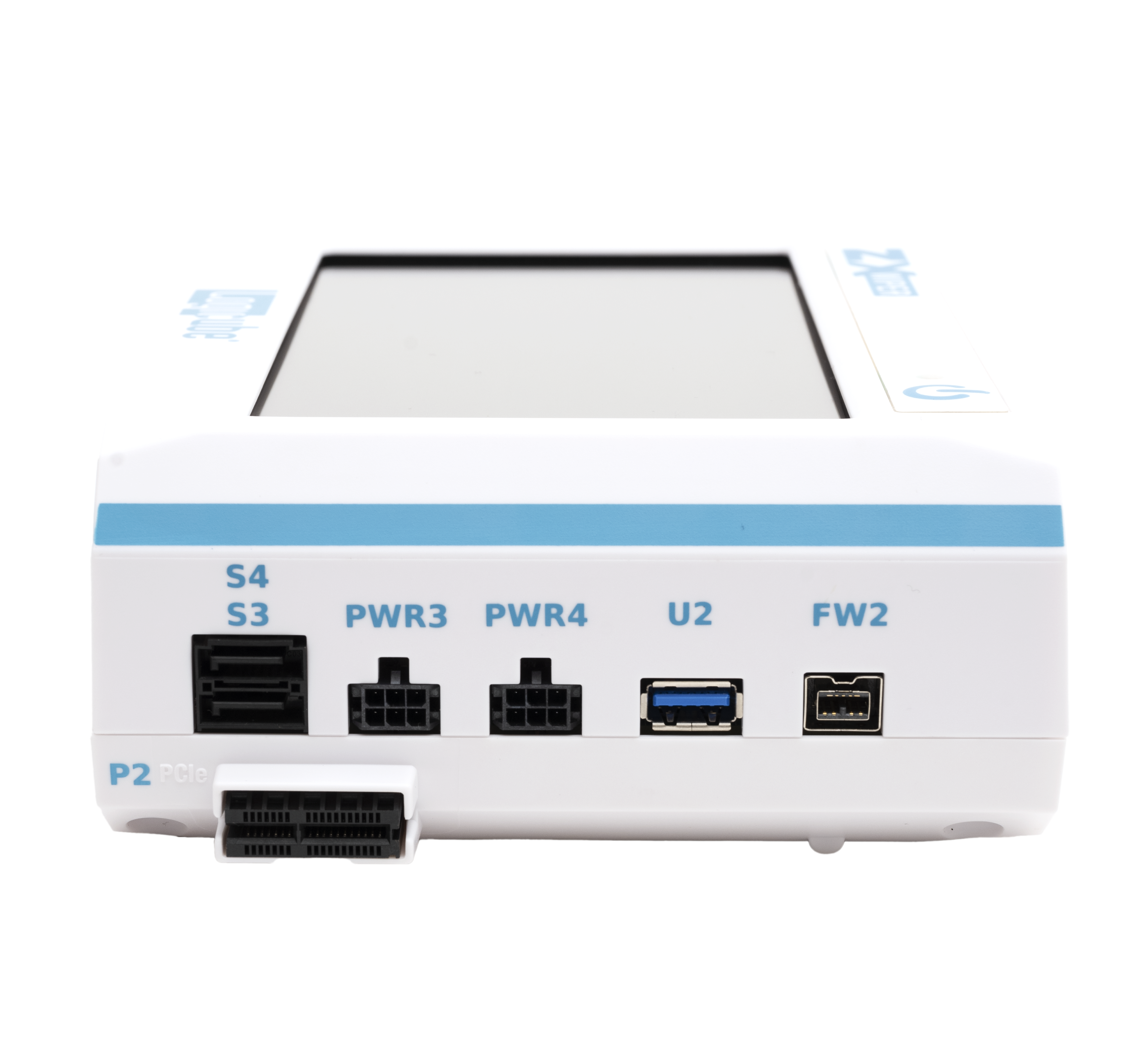

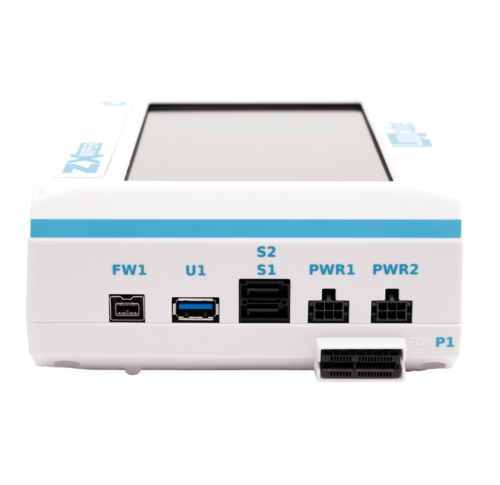

4 SAS/SATA targets, 4 USB 3.2 Gen 2 ports, 2 native-PCIe ports, 2 FireWire 800 ports
DoD Wipe
Supports 7 pass DoD specification 5220-22M wipe
Secure Erase
Supports a single pass Secure Erase
Custom Pass Wipe
Set a custom number of wipe passes. Gutmann 35 pass wipe can be accomplished using the Task Macro feature
Partial & Full Verify for Wipe Patterns
Satisfy NIST 800-88 Guidelines for Media Sanitation by selecting a partial or full verify for a Custom of DoD wipe or ITSP.40.006 v2 specifications
Network Support

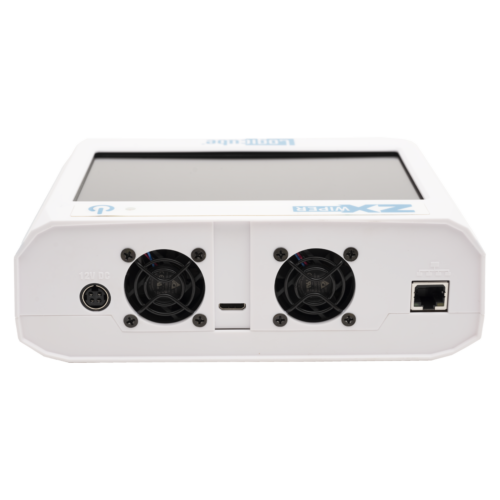

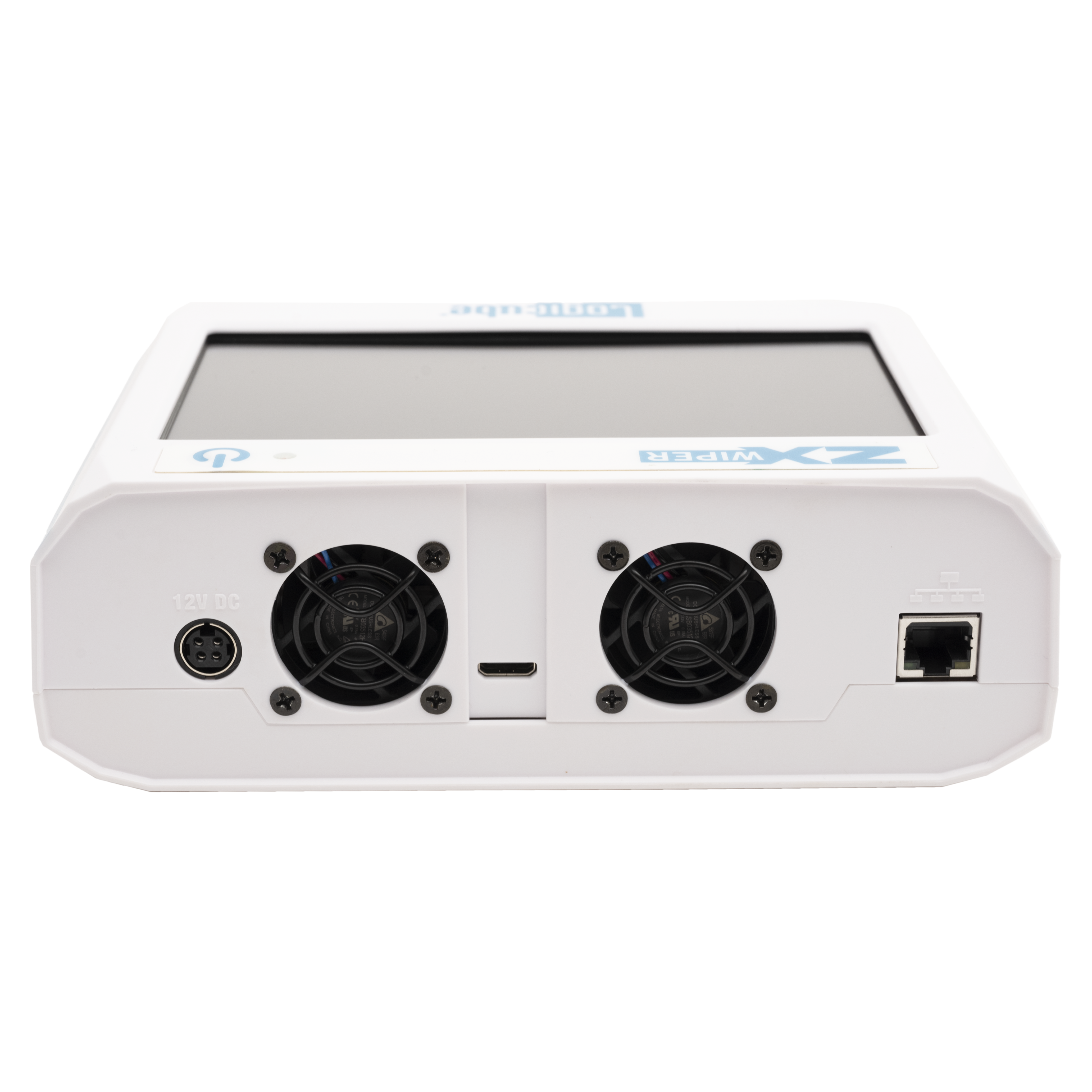

Connect ZX-Wiper to a network. One Gigabit Ethernet port is available.
Multi-Session Capability
Allows user to perform multiple tasks – up to 5 tasks can be run concurrently
Icon-Based User Interface
Simple to use, easy to navigate through menu
Remote Operation
Connect ZX-Wiper to a network and control all operations from a remote computer using a web browser. Remotely operate multiple ZX-Wiper units that are connected to the same network.

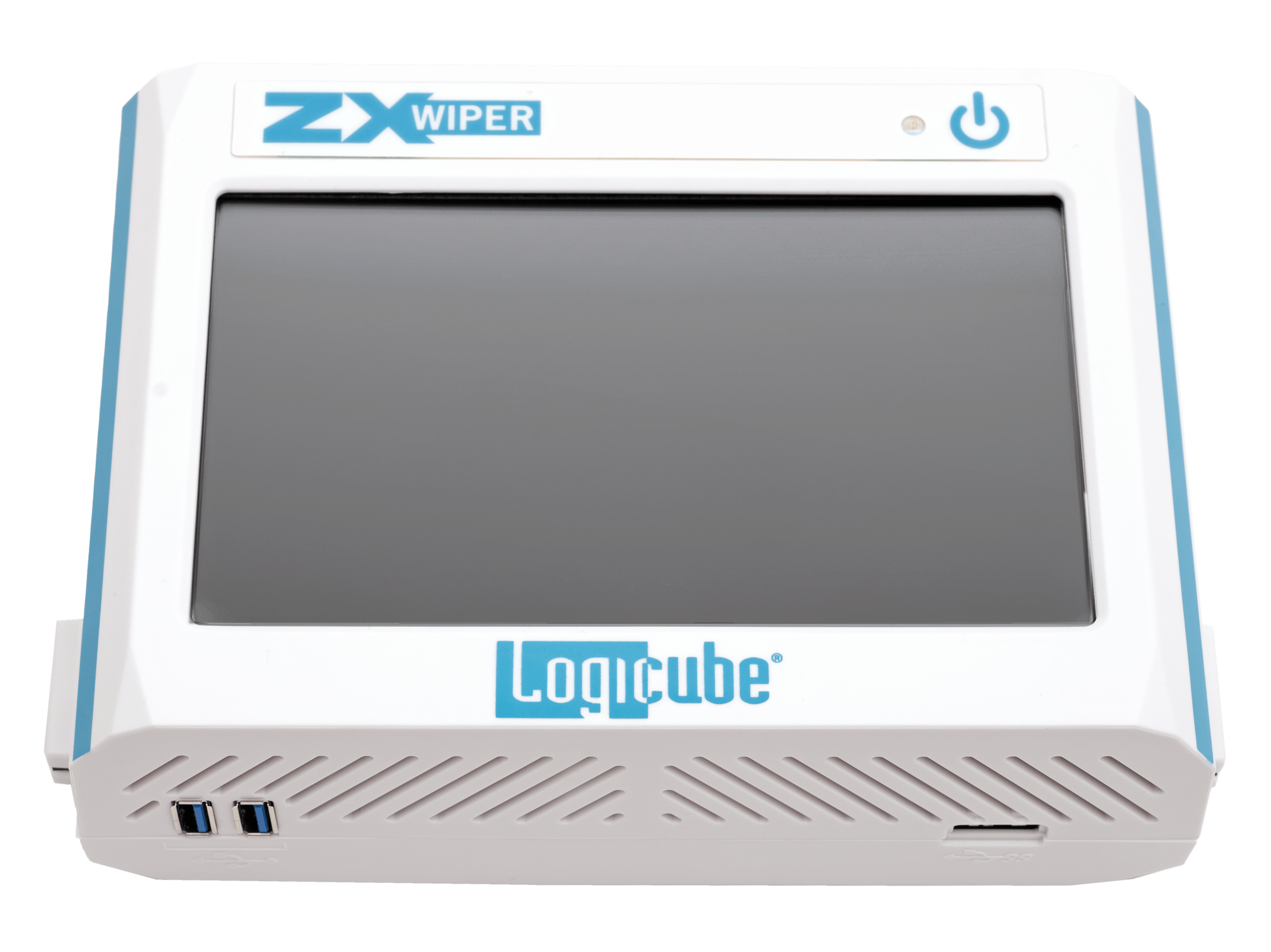

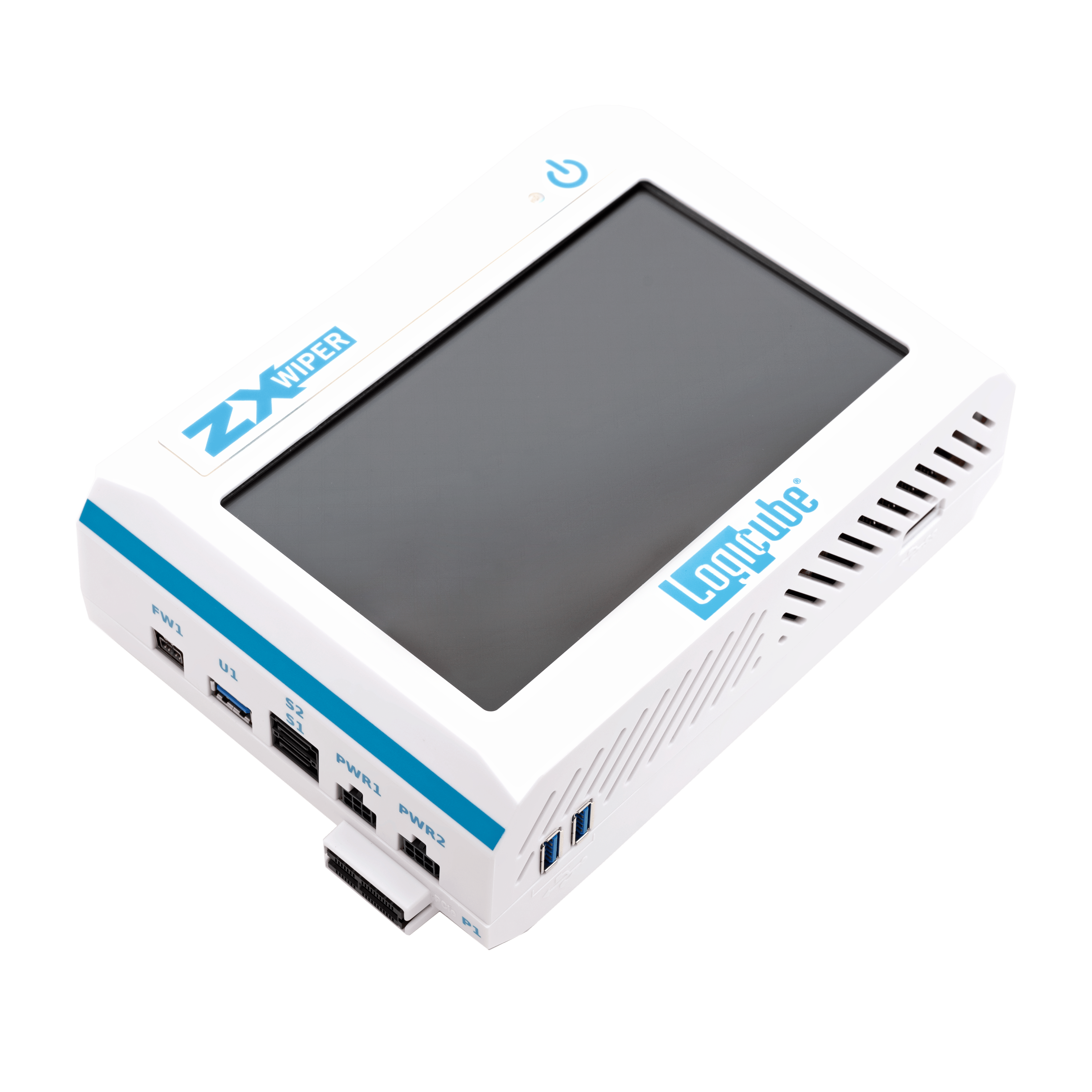

Color Touch Screen
A vibrant, responsive 7″ display makes it easy to navigate through menus
Advanced Administrative Functions
Allows administrators to manage network settings, create user profiles, save configurations
Audit Trail/Log Report
Provides detailed information of each operation. Can be exported to HTML, XML or PDF format
Task Macro
Allows users to set specific tasks to be performed sequentially. Automates your processes to optimize and streamline operations
HDMI Port
Allows you to connect to a projector or monitor

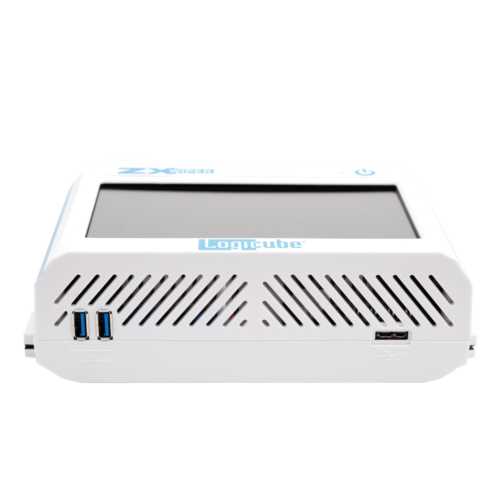

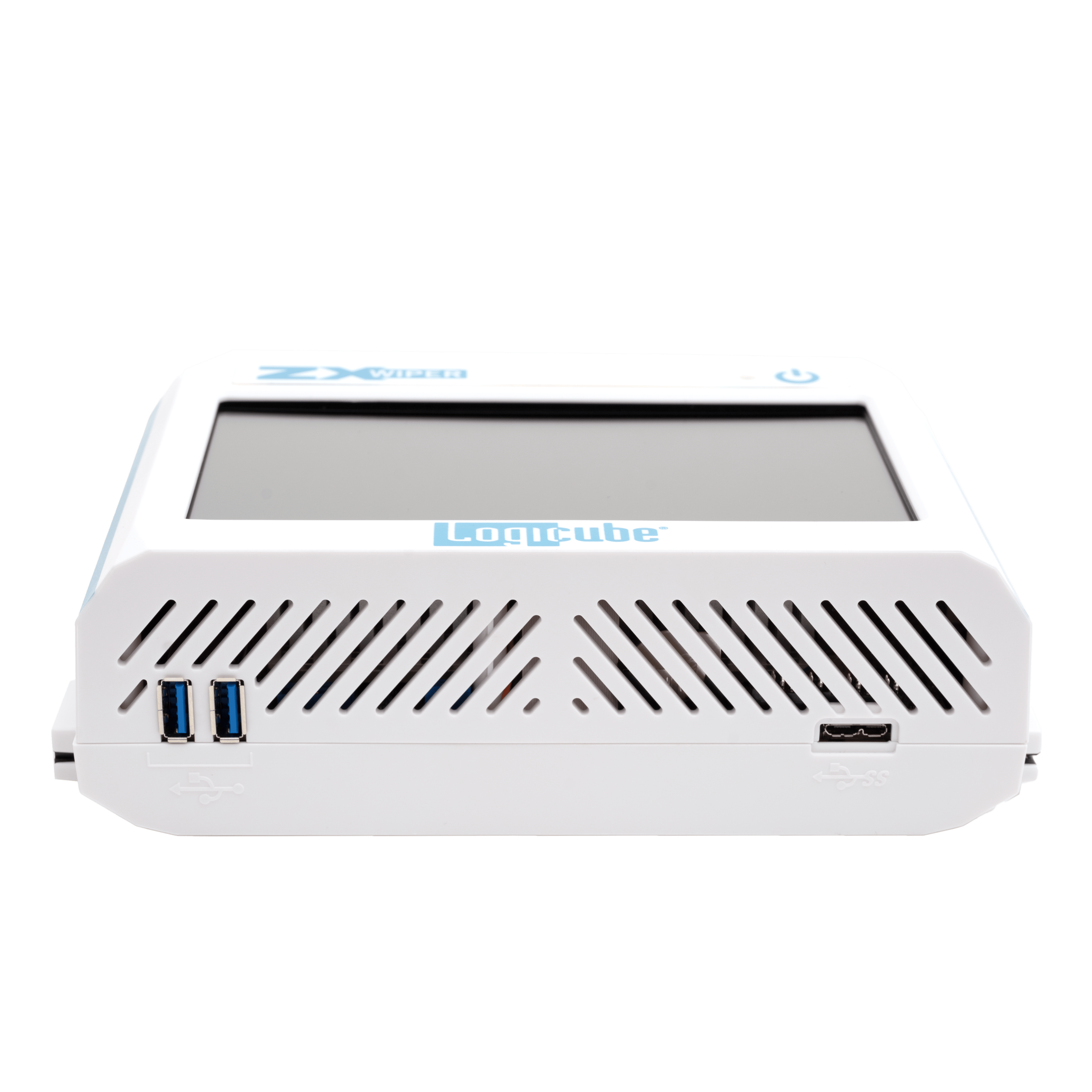

USB 3.2 Gen 2 Ports
Four 3.2 Gen 2 USB device ports that are available for sanitization. (Support for USB keyboard and mouse also included.)
Formats
The SuperSonix-NG formats target drives to NTFS, exFAT, EXT4 or FAT32 file systems and supports cloning from master drives formatted to any major file system.
File Systems
Supports all OS and file systems including Linux and Mac® in Mirror mode. Supports FAT16/FAT32/NTFS and Linux (ext, ext2, ext3, ext4) in CleverCopy mode.
Remote Operation
SuperSonix-NG-P allows you to control all operations from a remote computer using a web browser.
Advanced Administrative Functions
Administrators can create/manage image repositories and manage network settings (when Networking option is purchased), create user profiles and save configurations.
Task Macro
Allows users to set specific tasks to be performed sequentially. For example, set task 1 to wipe, task 2 to clone, task 3 to hash.
HPA/DCO
Wipe HPA/DCO areas of the drive
One-year Standard Warranty
The system comes complete with a one-year parts and labor warranty. Both an optional 1-year extended warranty (total of 2 years) and a 2-year extended warranty (total of 3 years) are available
Specs
Power Requirements:
12V DC, Grounded 11.5A
Power Consumption:
<140W w/drives
Operating Temperature:
0 to 40° C (32 to 104° F)
Relative Humidity:
20% – 80%
Net Weight:
2.0 lbs (.91kg)
Dimensions:
7.6”W x 5.5”D x 2.6”H (193 mm x 139.7 mm x 66.0 mm)
Agency Approvals:
RoHS Compliant, FCC Part 15 Class A, CE
Accessories
PCIe / NVMe / AHCI / M.2 / mSATA Adapter Kit
(complete multi-interface kit)
M.2 NVMe PCIe SSD to USB Adapter
M.2 NVMe PCIe SSD to USB adapter to sanitize M.2 NVMe type drives.
U.2 NVMe to PCIe Adapter
U.2 NVMe to PCIe Adapter to sanitize U.2 NVMe type drives
mSATA to SATA Adapter
mSATA to SATA adapter to sanitize mSATA type drives.
M.2 SATA Adapter
M.2 SATA to SATA adapter to sanitize M.2 SATA type drives
microSATA to SATA Adapter
microSATA to SATA adapter to sanitize microSATA drives
eSATA Cable
Cable for eSATA hard drives to sanitize eSATA drives.
USB Flash Card Reader
Used for sanitizing various flash media, including compact flash, SD cards.
2.5″/3.5″ IDE to SATA Adapter
2.5/3.5″ IDE to SATA adapter to sanitize 2.5″ or 3.5″ IDE/PATA drives.
1.8″ ZIF to IDE and 1.8″ IDE to SATA Adapter
1.8″ ZIF to IDE and 1.8″ IDE to SATA adapter pack to sanitize 1.8″ IDE/PATA drives.
SCSI Module Option (for SCSI drive support)
Optional SCSI module to sanitize SCSI type drives
