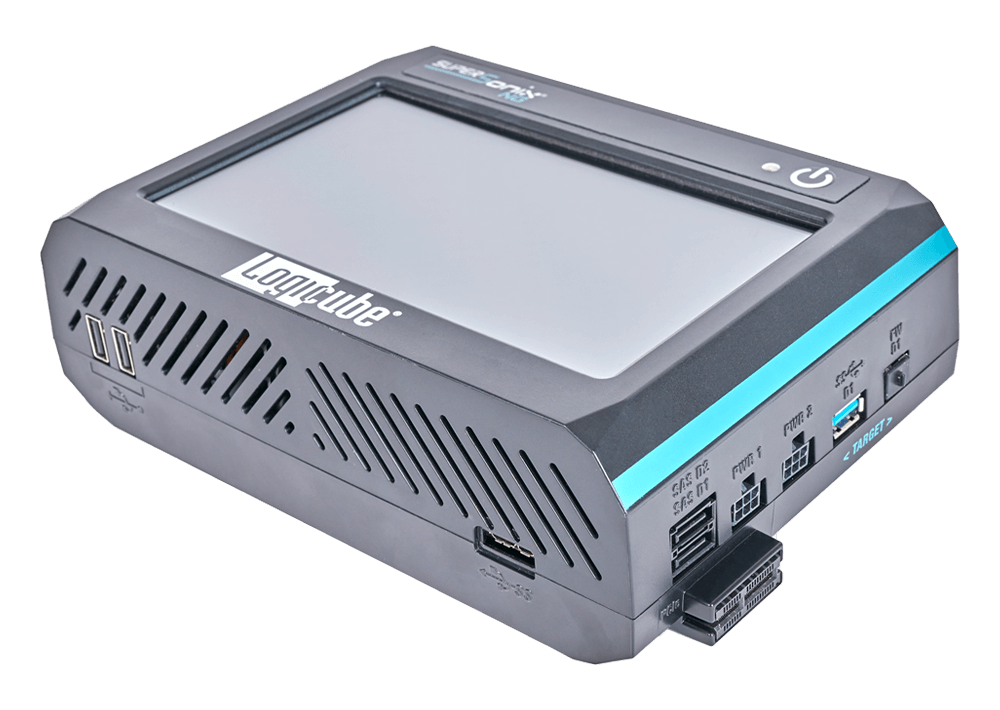

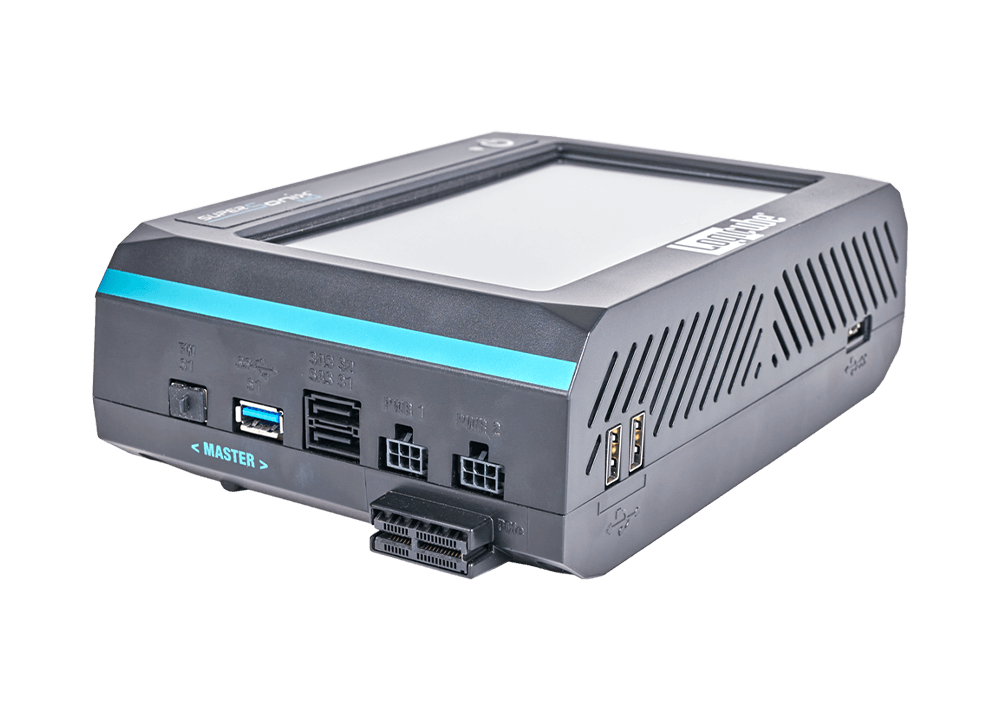

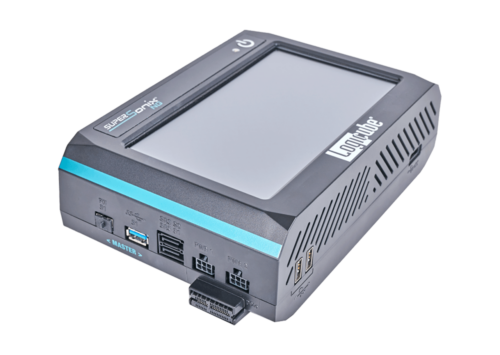

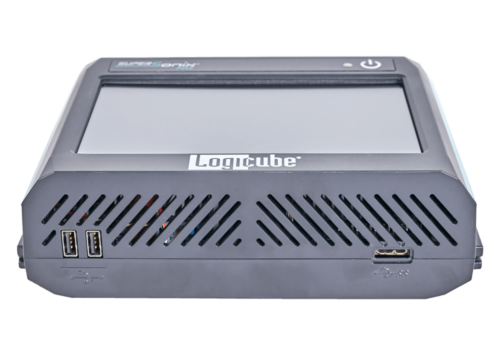

SuperSonix®-NG PCIe
$2,914.92
The SuperSonix®-NG PCIe hard drive duplicator is a unique portable hard drive cloner on the market that supports PCIe M.2 SSDs including AHCI & NVMe types.
The SuperSonix-NG PCIe delivers blazing fast hard drive cloning at up to 31GB/min and efficiently performs hard drive duplicating tasks including PC deployments, OS upgrades, content/application distribution and data back-up tasks. Its compact size makes it ideal for the workbench or mobile onsite applications.
The SuperSonix®-NG PCIe hard drive duplicator is the only portable/hand-held hard drive cloner on the market that supports PCIe M.2 SSDs including AHCI & NVMe types!
The SuperSonix-NG-PCIe delivers blazing fast hard drive cloning at up to 31GB/min* and efficiently performs hard drive duplicating tasks including PC deployments, O/S upgrades, content/application distribution and data back-up tasks. Its compact size makes it ideal for the workbench or mobile on-site applications.
- Clone from up to 4 master drives to 4 target drives.
- The SuperSonix-NG PCIe includes 1 PCIe, 2 SATA and 1 USB 3.0 master port and 1 PCIe, 2 SATA, and 1 USB 3.0 target port.
- Clone to/from PCIe M.2, AHCI and NVMe type drives and PCIe express cards using optional PCIe adapters.
- Support for SAS & FireWire® drives is available with an optional software enablement.
- Support for IDE, ZIF, mSATA, microSATA, eSATA drives and compact flash media is available with optional adapters.
- Supports both mirror copy (100% bit for bit) and a “CleverCopy” mode that intelligently copies only data areas of the hard drive.
- Safely sanitize drives with a wipe feature. Supports DoD 7 pass, Secure Erase and meets NIST 800-88 guidelines.
| Weight | 9 lbs |
|---|---|
| Dimensions | 20 × 13 × 10 in |
Features
High-Speed Duplication
The SuperSonix-NG-P hard drive duplicator will clone at blazing speeds of up to 31GB/min*.
Multi-target Cloning
Clone from 1 or 2 master drives SATA (SAS Optional) to 1 or 2 SATA (SAS Optional) target drives simultaneously.
Clone from 1 PCIe master to multiple target drives; 1 USB3, 2 SATA (SAS optional), 1 PCIe, 1 FireWire® (optional). Cloning to/from PCIe drives requires the use of a Logicube PCIe adapter.
Clone from 1 USB 3.0 master to multiple target drives; 1 USB 3.0, 2 SATA (SAS optional), 1 FireWire (optional). Use the optional USB to SATA adapter to convert the USB3.0 ports to SATA and clone from up to 3 SATA master drives to 3 SATA targets.
IDE Support
IDE 1.8”/2.5”/3.5” IDE and IDE ZIF drives are supported with optional IDE to SATA adapters. eSATA, microSATA, mSATA, and compact flash media are supported with optional adapters.
PCIe Support
Clone PCIe M.2 AHCI or NVMe, PCIe and mini-PCIe express cards using the SuperSonix-NG-P and optional Logicube PCIe adapters. A PCIe Adapter kit (F-ADP-PCIe-T-KT) is available that contains 4 adapters to use with M.2 PCIe, M.2 NVMe, mSATA SSDs and PCIe and mini-PCIe cards.
Clone USB Enclosures and Thumb Drives
Features 1 USB 3.0 master port and 1 USB 3.0 target port.
SAS & FireWire Support
SAS and FireWire drives are supported with an optional software-based activation.
Multi-Image Master
Store multiple images created in SuperSonix-NG-P in a repository on a SATA drive or on a USB enclosure connected to the SuperSonix-NG and then clone to selected target drives. Uses can also store multiple SuperSonix-NG created images on a shared network location and then clone to selected targets when the Networking option is purchased.
Network Sharing Option
Allows network access (upload/download) to drive images and log files. One Gigabit Ethernet port is available. Provides the ability to clone to/from a network repository. This feature requires the purchase of the Networking Option.
Multi-Session Capability
Allows users to perform multiple tasks including cloning wiping or hashing concurrently.
Write-Protected Master
SuperSonix-NG-P master ports are automatically write-blocked to prevent any alteration to sensitive data on the master drive.
Wipe Feature
Wipe lets users choose from Secure Erase, DoD wipe, and custom pass settings. Complies with NIST 800-88 guidelines. User selectable option to verify wipe. Complies with NIST 800-88 guidelines. User selectable option to verify wipe pass value during the wipe process.
Error Handing
A error granularity user-selectable setting provides more control over error handling of the master drive. Four cluster size settings are provided to determine the number of sectors to be skipped when a bad sector is found on the master drive. Users can also choose to skip bad sectors or abort the cloning operation when bad sectors are encountered on the master drive.
Unlock ATA security locked drives
Temporarily unlock drives and then clone, hash or wipe. Requires ATA security password to unlock.
Hash Verification Option
Clone and verify the exact replication of the master drive in one single process. Features SHA-1, SHA256 or MD5 algorithms and hash verification is embedded in the audit trail/log file. Requires the purchase of an optional software activation package.
Multiple Cloning Modes
Supports Mirror (bit for bit copy) and CleverCopy (copies only data areas, skips blank sectors). For multiple partition drives, SuperSonix-NG-P automatically selects the optimum cloning method (Mirror or CleverCopy).
Task Macro
Allows users to set specific tasks to be performed sequentially. For example, set task 1 to wipe, task 2 to clone, task 3 to hash.
Formats
The SuperSonix-NG formats target drives to NTFS, exFAT, EXT4 or FAT32 file systems and supports cloning from master drives formatted to any major file system.
File Systems
Supports all OS and file systems including Linux and Mac® in Mirror mode. Supports FAT16/FAT32/NTFS and Linux (ext, ext2, ext3, ext4) in CleverCopy mode.
Remote Operation
SuperSonix-NG-P allows you to control all operations from a remote computer using a web browser.
Advanced Administrative Functions
Administrators can create/manage image repositories and manage network settings (when Networking option is purchased), create user profiles and save configurations.
Task Macro
Allows users to set specific tasks to be performed sequentially. For example, set task 1 to wipe, task 2 to clone, task 3 to hash.
Compact Footprint
The SuperSonix-NG-P features a compact size at 7.6″ X 5.5″ X 2.6″ (19cm X 13.9cm X 6.6cm) and weighs only 2.0lbs (1.0kg).
Audit Trail/Log Report
Detailed information about the cloning session is provided, and reports can be printed from a browser. Report includes a digital signature for authentication purposes. Reports are available in PDF, HTML or XML format and users can export individual or all log reports to a USB flash drive.
USB 2.0 Host Ports
The unit features two USB 2.0 ports for connecting a keyboard and mouse as well as an HDMI port for connection to a monitor.
HPA/DCO/ACS3
Clone or wipe HPA (Host Protected Area), DCO (Device Configuration Overlay), or ACS3 (ATA/ATAPI Command Set-3) areas of a drive.
Color Touch Screen Display
A vibrant display provides an intuitive and easy to use interface.
Other Features
End of task notification available as either audible notification or email for successful tasks or tasks that show an error. Device hostname and NTP servers can now be customized. HTTPS support for secure remote access.
User Manual
The user manual is available via a QR code clickable link within the user interface on SuperSonix-NG-P.
One-year Standard Warranty
The SuperSonix-NG-P hard drive duplicator comes complete with a one year parts and labor warranty. Both an optional 1 year extended warranty (total of 2 years) and a 2 year extended warranty (total of 3 years) are available.
*Speed based on using Mirror mode and solid state drives. The specification and condition of hard drives and settings used may affect the achieved speed
Specs
Power Requirements:
12V DC grounded (non-isolated), 11.5 AMP
Power Consumption:
<140W w/drives
Operating Temperature:
32-104F (0 to +40C)
Relative Humidity:
20% to 80%
Net Weight:
2.0lbs (1.0 kg)
Dimensions:
7.6″ W X 5.5″ D X 2.6″ H (19.0cm X 13.9cm X 6.6cm)
Agency Approvals:
CE, FCC Part 15 Class A, RoHS Compliant
Accessories
PCIe Adapter Kit
Kit for M.2 PCIe, M.2 NVMe, M.2 SATA, mSATA SSD, PCIe and mini-PCIe cards. Includes 1 each: M.2 PCIe, M.2 SATA, mSATA, Mini PCIe.
mSATA to SATA Adapter
mSATA to SATA adapter to clone mSATA type drives.
microSATA to SATA Adapter
microSATA to SATA adapter to clone microSATA drives.
eSATA Cable
Cable for eSATA hard drives to clone eSATA drives.
18″ Extended SATA Cable Set
18″ cable for SATA drives.
2.5″/3.5″ IDE to SATA Adapter
2.5/3.5″ IDE to SATA adapter to clone 2.5″ or 3.5″ IDE/PATA drives.
1.8″ ZIF to IDE and 1.8″ IDE to SATA Adapter
1.8″ ZIF to IDE and 1.8″ IDE to SATA adapter pack to clone 1.8″ IDE/PATA drives.
USB Flash Card Reader
Used for cloning various flash media, including compact flash, SD cards.
USB3 to SATA Adapter
Convert USB 3.0 ports for use with SATA drives.
4-port USB 3.0 hub
Increase the number of USB 3.0 ports available.
SATA/SAS Data & Power Replacement Cable
SATA/SAS data & power replacement cable.
Hard case
Hard case only (foam not included).
Soft-sided Carrying Case
Soft-sided carrying case for the SuperSonix-NG PCIe.
